Small, but versatile

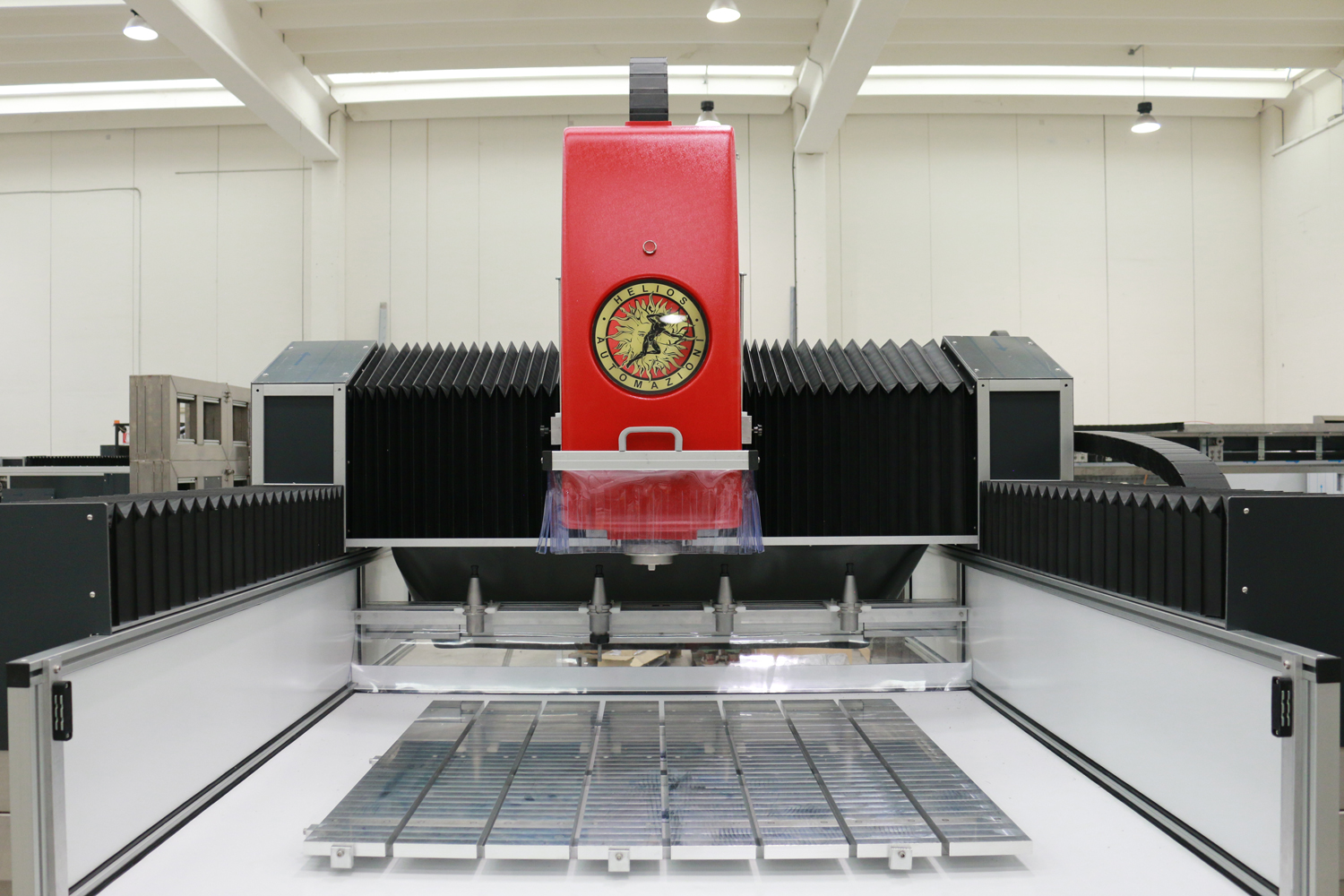

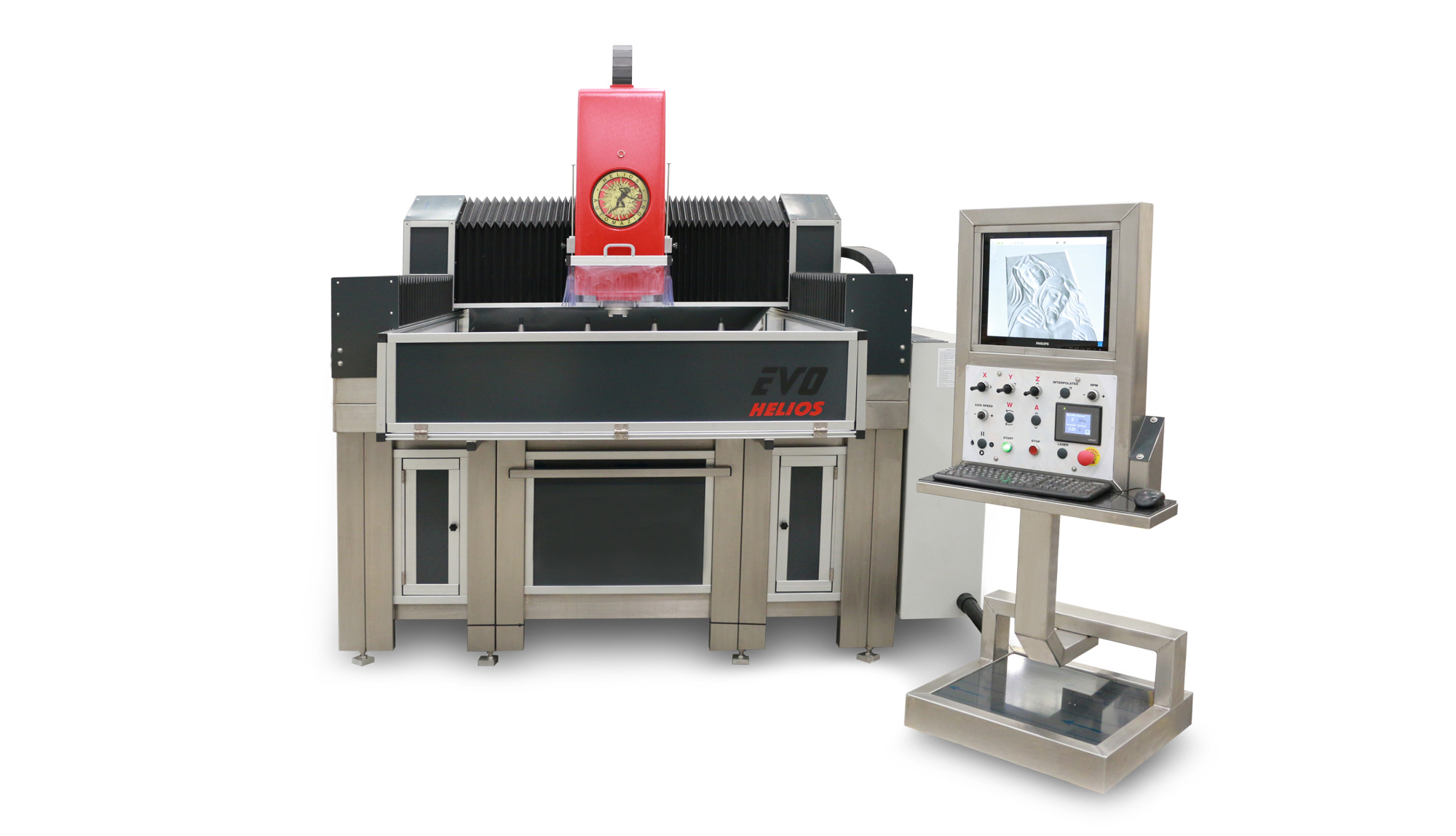

The mini machining center Helios Evo is an innovative solution by Helios Automazioni for memorial building and tombstone fabrication on marble, granite, and other stone materials. The machine has been designed with a compact and powerful structure to guarantee high rigidity and precision during the process. The mini machining center Helios Evo is a versatile and compact solution for memorial building, tombstone fabrication, and interior design stone elements. Its solid structure, combined with the advanced software and precision mechanics, makes it ideal for those fabricators looking for accurate and reliable results in different processes.
• Sacred art: memorial building, tombstone fabrication, and other stone elements.
• Marble and granite fabrication: cutting, profiling, milling, carving, and other types of processing on stone materials.
• Interior design: fabrication of furnishing elements, decorative details, and customized pieces on several materials.
- Monolithic Stainless Steel Structure: Ensures resistance to corrosion and durability over time.
- Precision Mechanics: Composed of screws and recirculating ball guides, guaranteeing fluid movements and extreme precision in processes.
- Big Working Area: Allows for various types of processes with high flexibility.
- Aluminium Rectified Table: Ensures table integrity and resistance to process stress and corrosion; calibration guarantees perfect flatness of the support surface.
- Brushless Motors: Contribute to reliable performance, reducing potential wear.
- Water Recirculation System: Keeps the working area clean and cools tools during processes.

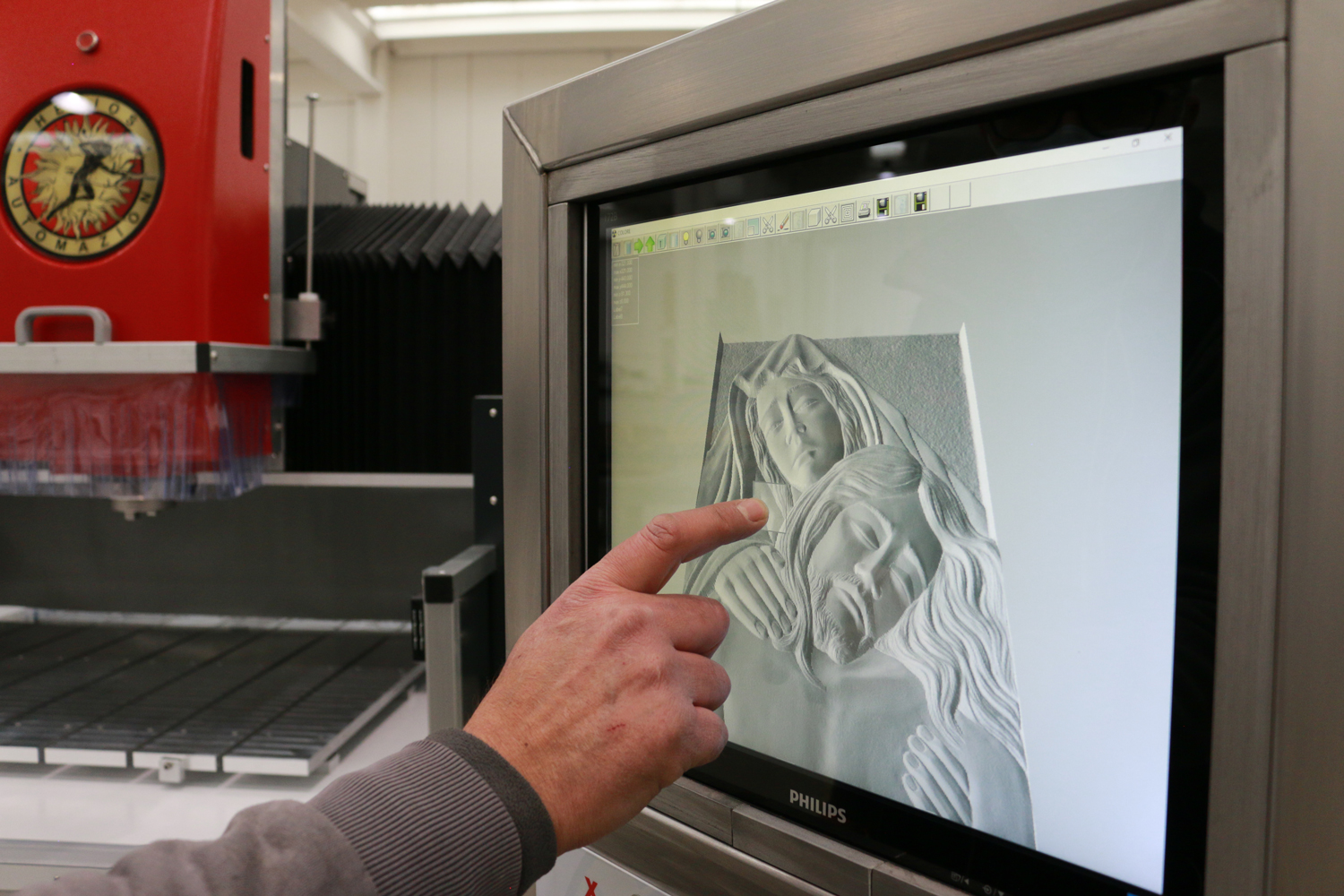

- Galaxy Stone Software: Offers an intuitive interface to program and control processes.
- Industry 4.0 Certification: Highlights up-to-date processes and machine interconnection with current technological contexts.
- Full Warranty: A 2-year warranty confirming Helios' commitment to product quality and reliability.
| Feature | Evo (Standard Version) | Evo (Automatic Tool Change Version) |
|---|---|---|
| Overall Dimensions | 90.55 x 86.61 x H84.29 in | 90.55 x 86.61 x H84.29 in |
| Working Area (X, Y, Z) | X39.37 - Y39.37 - Z10.23 in | X39.37 - Y39.37 - Z10.23 in |
| Power Supply | 220 / 400 V (3P + N + GND) 50/60 Hz | 400 V (3P + N + GND) 50/60 Hz |
| Installed Power | 5 kW | 6.5 kW |
| Spindle Rotation Speed | 0 ÷ 12,000 rpm | 0 ÷ 9,000 rpm |
| Tool Holder | 1/2" Gas | ISO BT 40 |
| Tool Change | Manual | Automatic (4 positions) |
| Max Axis Speed | 590.55 in/min | 590.55 in/min |
| Bridge Passing | 10.63 in | 10.63 in |
