H 800 – H 625 – H1600
Stone Cutting
H 800 – H 625
Total Stone Solutions provides high quality equipment and goes above and beyond to service and support our business
5-axis bridge saws

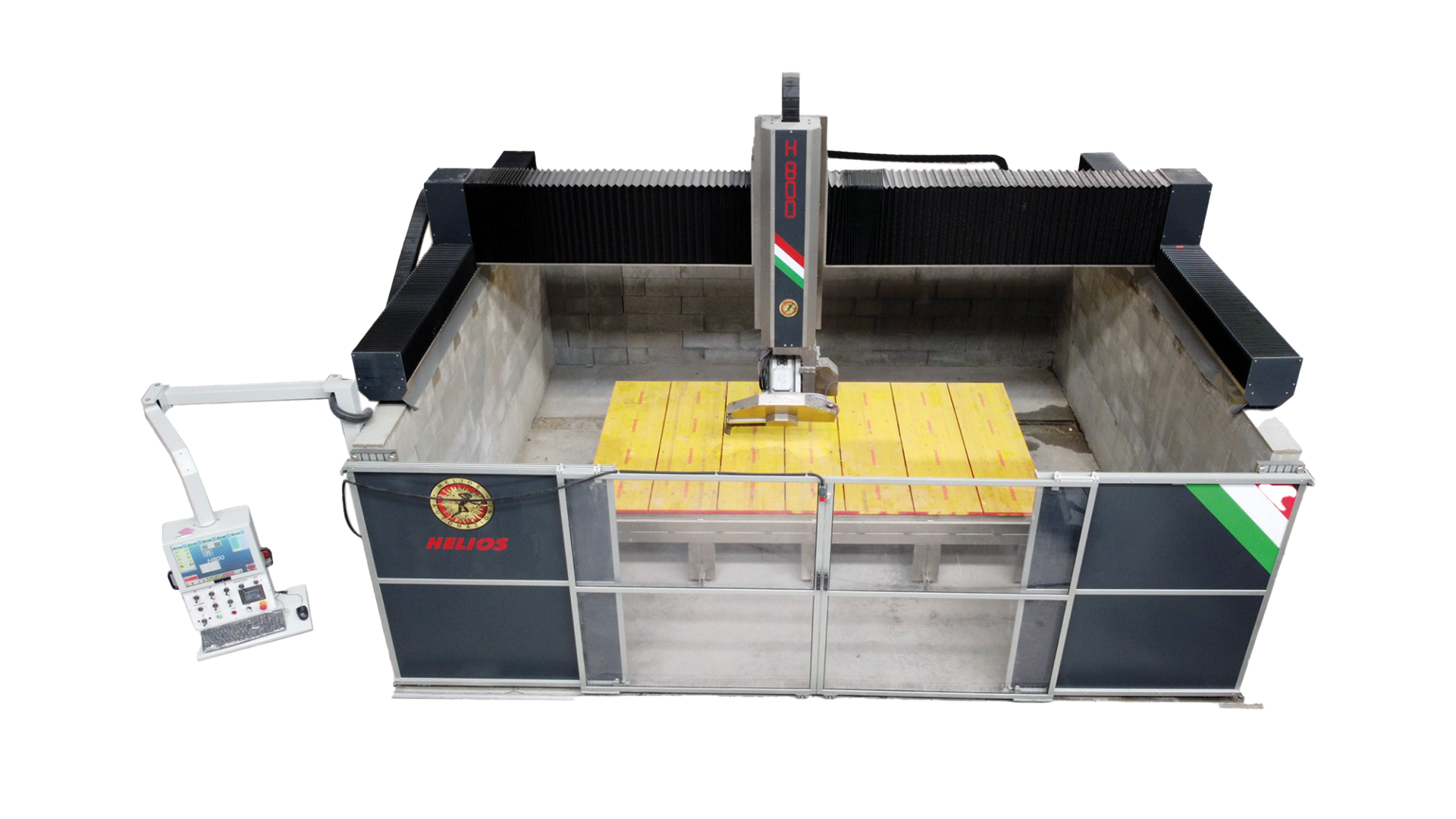

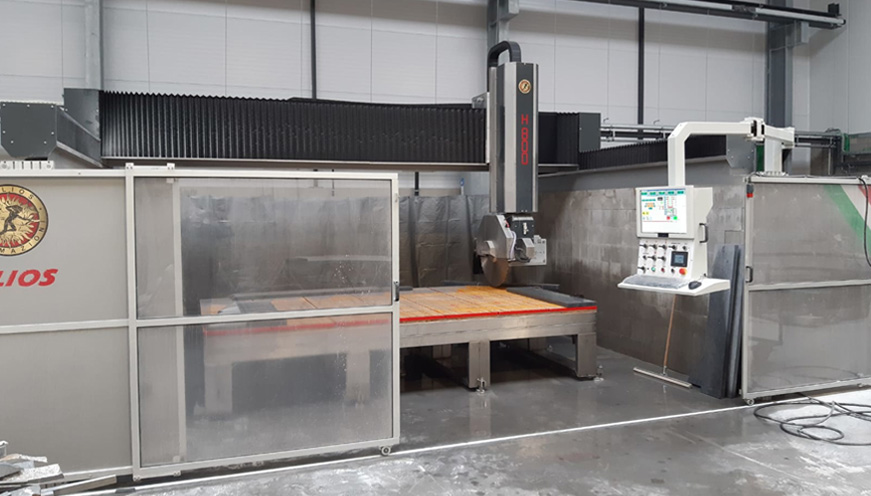

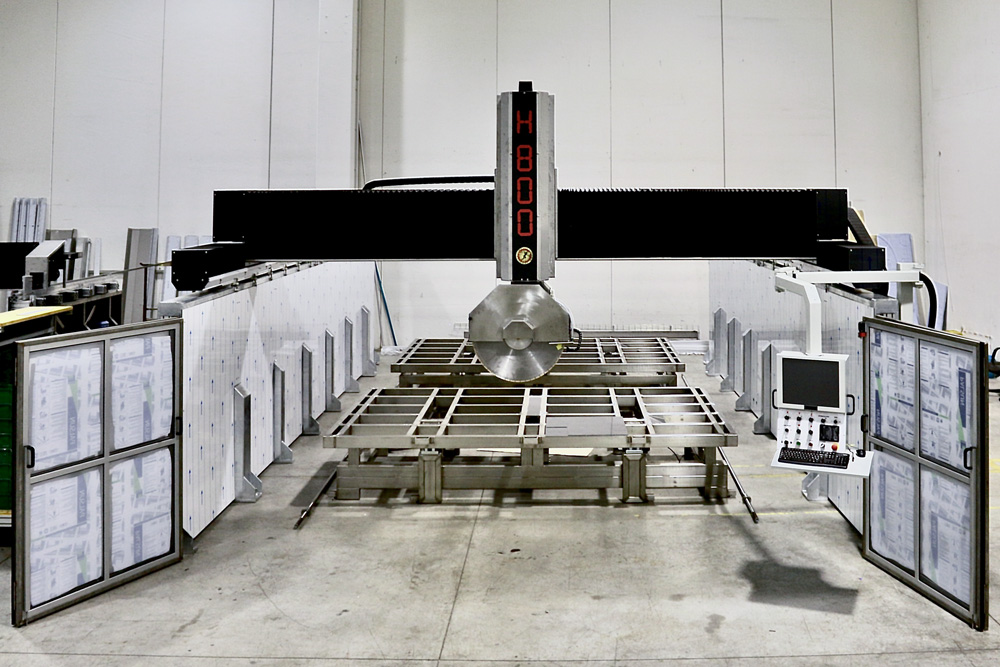

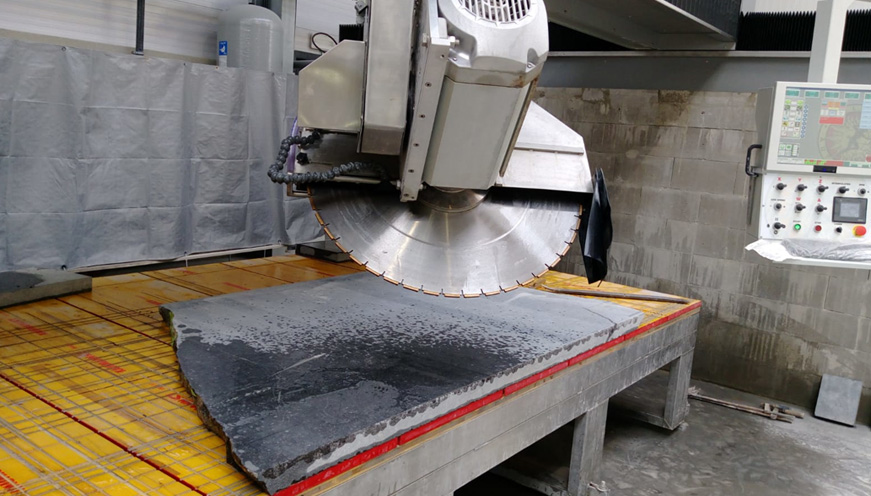

Helios H800 and H625 are 5-axis bridge saws, perfect for cutting large sizes and big thickness of stones. The bridge structure of the machines can be mounted on concrete or on galvanized carpentry structure, according to customer’s needs. The saws can be equipped with a tilting table, which allows the easy loading of the pieces and the Photoscan system, which is helpful for an interactive use of the machine. The Photoscan is a slabs scanner, a measuring system, and a template reader, which allows to start the cutting process just a click away. This series of bridge saws is very strong, performing, and precise.
• Extreme precise cuts of slabs with different size and thickness.
• Fabrication of bath and kitchen countertops, coverings and decorative walls.
• Artistic works on stone and porcelain materials.
- Stainless steel structure: The sturdy stainless-steel structure ensures stability and resistance to corrosion, preserving its qualities and performances over time.
- Stainless-steel working table: Ensures a stable, durable, and perfect surface to work all materials on.
- Big working area: The machine can work on pieces of different sizes up to 151.57 in x 94.48 in (Cut 500 XL).
- Z-Axis stroke: 18.89 in z-axis stroke allows 3D works with extremely accurate details.
- Cutting versatility: Works with discs on marble, granite, quartz, and ceramics, as well as with tools thanks to the second electro-spindle option.
- Brushless motors: Advanced electronics of the brushless motors ensure stable and reliable performances.
- Precision mechanics: Recirculating ball screws and harmonic-drive gearboxes provide fluid and precise movements.
- Run-Touch software: Intuitive software makes the machine simple to use, with programming accessible even to less skilled operators.
- Full warranty: Covered by a 2-year full warranty, allowing you to work carefree and safe.
| Feature | Cut 500 | Cut 500 XL |
|---|---|---|
| Overall dimensions | 212.59 x 151.57 x H114.96 in | 232.28 x 151.57 x H114.96 in |
| Working area (X, Y, Z) | X131.88 - Y94.48 - Z13.38 in | X151.57 - Y94.48 - Z13.38 in |
| W axis rotation | 0° ÷ 360° | |
| A axis rotation | 45° ÷ 90° (optional 0° ÷ 90°) | |
| Disc motor power | 11.8 kW | |
| Disc motor rotation speed | 0 ÷ 4500 rpm | |
| Installed power | 18 kW | |
| Power supply | 400 V (3P + N + GND) 50/60 Hz | |
| Max. speed axis X | 1181.10 in/min | |
| Max. speed axis Y | 787.40 in/min | |
| Max. speed axis Z | 393.70 in/min | |
| Table dimensions | X129.92 - Y78.74 in | |
| Disk diameter | min. 13.78 in - max. 19.68 in | |
| Max. cutting depth | 5.12 in (19.68 in disk) | |
| Disk hole diameter | 1.96 in | |
H-1600 – 4-axis bridge saw
The H1600 has been designed for stone blocks cutting. Thanks to its mobile bridge structure, the machine offers a large working area, ideal for precision machining of large materials. The machine beam is milled carpentry built, stainless steel and anti-corrosion materials covered, to ensure robustness and durability over time, even in hard working conditions. The precision mechanics composed of screws and recirculating ball guides ensures maximum precision both in cutting operations and in complex machining. The rotating table, interpolated with the machine, allows linear cuts with different degrees, offering great versatility in project management. The H1600 bridge saw can be equipped with the Galaxy Stone software, which allows 3D modelling with the disk, starting from STL. This makes the machine ideal not only for cutting, but also for the creation of complex models and frames. The H1600 can be installed on reinforced concrete walls or on carpentry shoulders, according to the customer’s different structural needs.
Extreme precise cuts of slabs with different size and thickness.
• Fabrication of bath and kitchen countertops, coverings and decorative walls.
• Artistic works on stone and porcelain materials.
| Working area (X, Y, Z) | X157.48 in, Y149.60 in, Z82.67 in |
| Disc motor power | 31.8 kW (optional 42.6 kW) |
| Disc motor rotation speed | 0 – 3,800 rpm (31.8 kW motor); 0 – 2,400 rpm (42.6 kW motor) |
| Power supply | 400 V (3P + N + GND) 50/60 Hz |
| X-axis stroke | 157.48 in |
| Y-axis stroke | 149.60 in |
| Z-axis stroke | 39.37 in |
| Table dimensions | X137.79 in, Y78.74 in |
| Maximum disk diameter | 62.99 in |
| Disk hole diameter | 2.36 in (3.14 in for 42.6 kW motor) |
| Flange diameter | 11.02 in |
| Disk rotation speed | 970 rpm |
