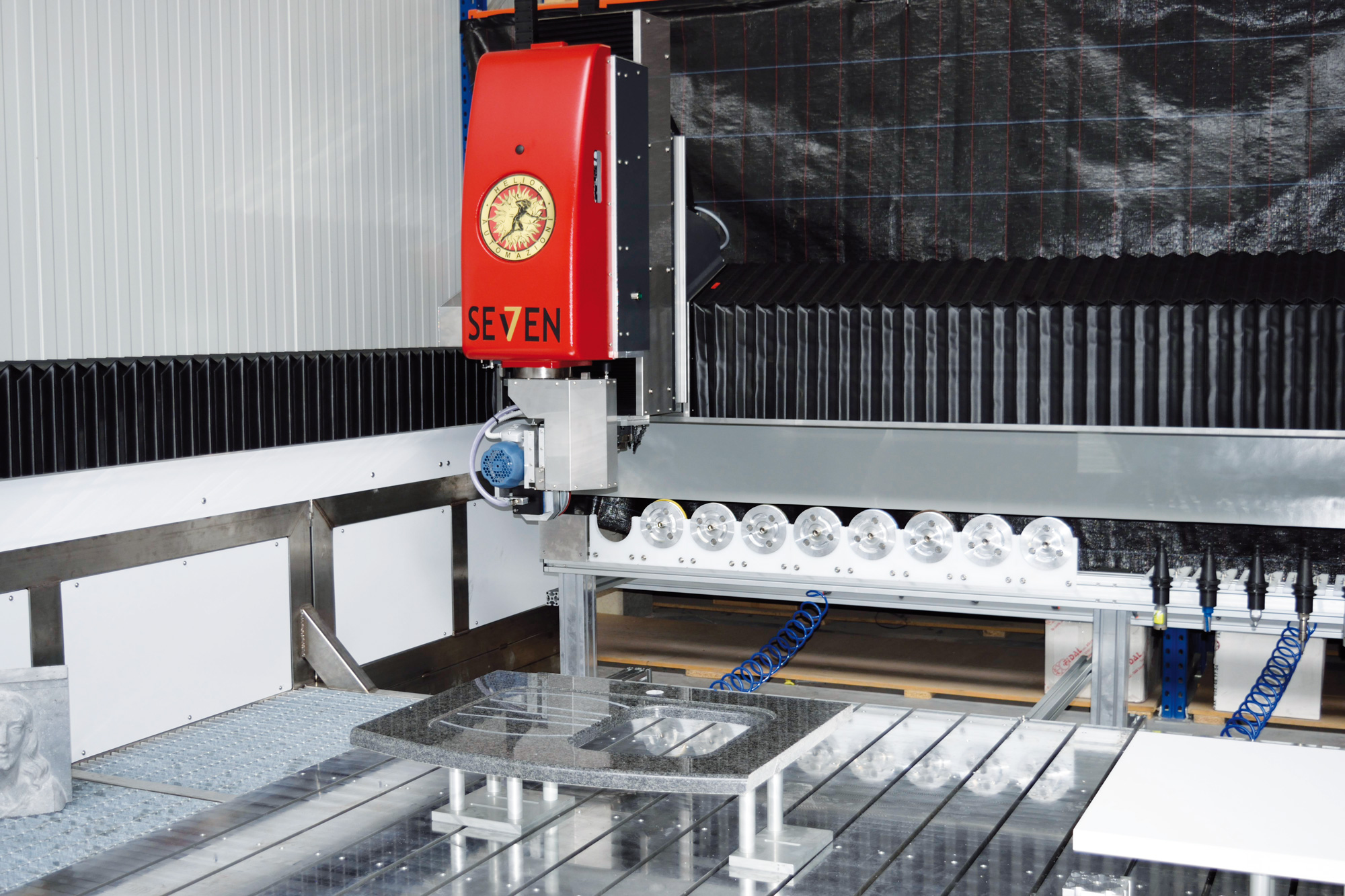

3+5 axis machining center

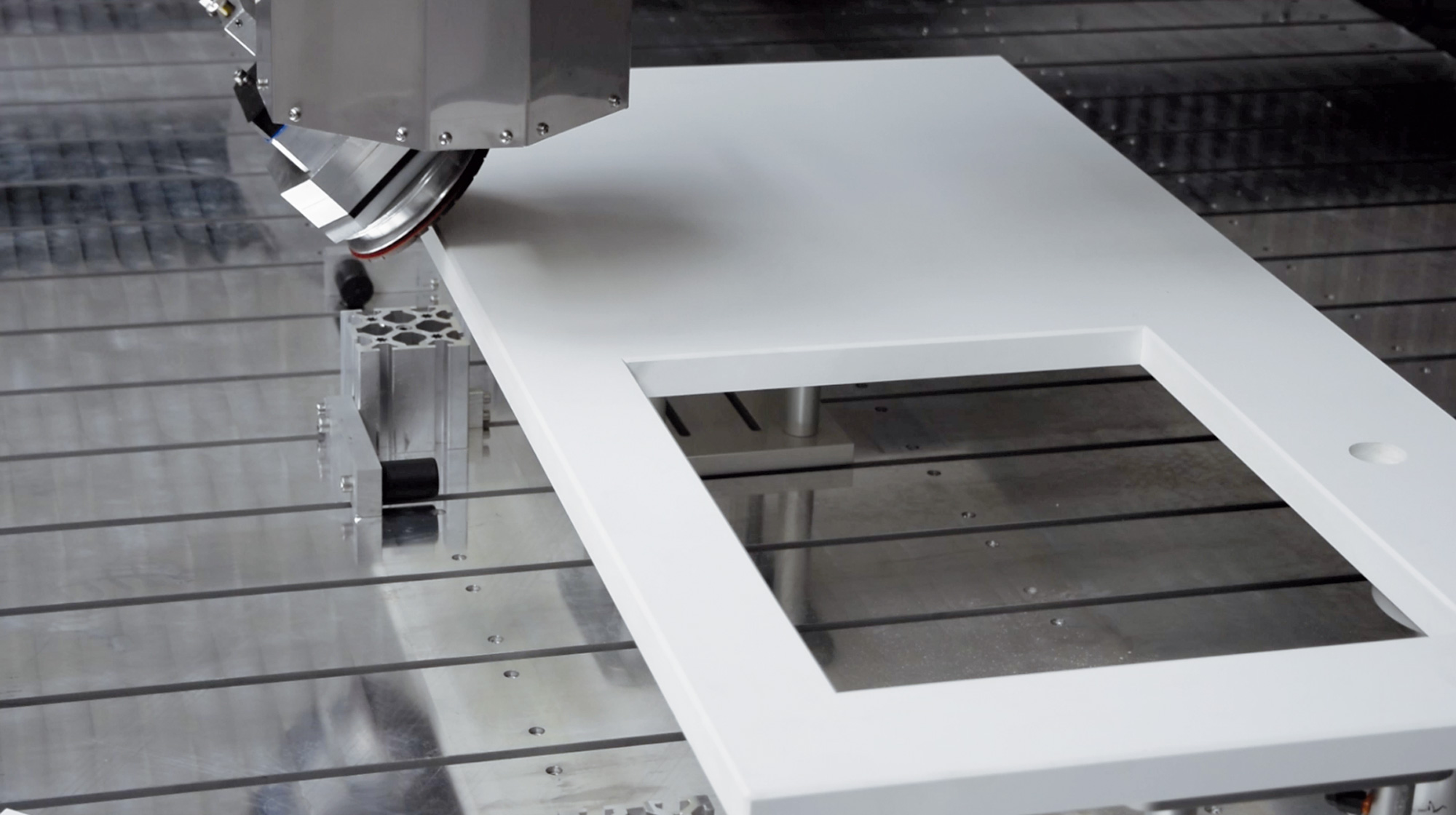

Il centro di lavoro modello Seven è basato sulla comprovata piattaforma della serie Zeus, offrendo una combinazione di versatilità a cinque assi interpolati e funzionalità avanzate per la lucidatura e lavorazioni dettagliate. Con l’aggiunta della testa operatrice a cinque assi dedicata alla lucidatura, il centro di lavoro modello Seven è progettato per rispondere alle esigenze specifiche delle lavorazioni di piani cucina su misura e di dettagli accurati, garantendo risultati di alta qualità e una maggiore versatilità nel processo di produzione.
- Monolithic Stainless Steel Structure: Ensures durability and resistance to corrosion, maintaining quality over time.
- Aluminium Rectified Table: Guarantees flatness and resistance to process stress and corrosion.
- Security Doors: Equipped with a manual sliding system and automatic machine check sensor for enhanced safety.
- Automatic Tool Change: Features a tool magazine with 20 ISO 40 positions and 10 H7 positions for efficient operation.
- Command Console: Includes a touch screen display, mouse, keyboard, command buttons, and joystick for comprehensive control over the machine.
- Galaxy Stone Software: Offers numerous functions to achieve various works in interior design, sacred art, and kitchen/bath tops, delivering excellent results on all kinds of materials.
- Laser Pointer for Suction Cups Positioning: Establishes precise points for suction cups setup, aiding in slab fixing for tops and drain boards processes; also serves as a process simulator.
| Overall Dimensions | 232.28 x 177.16 x H98.42 in |
| Speed Axes (X, Y, Z) | X151.57 - Y118.11 - Z13.38 in |
| Power Supply | 400 V (3P+N+GND) 50/60 Hz |
| Installed Power | 16 kW |
| Spindle Rotation Speed | 0 ÷ 9000 rpm |
| Tool Holder | ISO BT 40 - 1/2" GAS - H7 |
| Spindle Power | 7.5 HP - 3 HP |
| Tool Magazine | 20 + 10 positions |
| Max. Speed Axes | 1181.10 in/min |
| Bridge Passing | 21.06 in |
